150 x 3 x 20mm CBN Grinding Wheel, 60 Degree

$320.32

Add to Cart
cbn grinding wheel
150 x 3 x 20mm CBN Grinding Wheel, 60 Degree
$320.32

Free ground shipping on orders w/ 3+ blades – Use Code: FREESHIP

  • Best Price Guarantee
  • Order yours before 3.30pm EST forย Same-day Shipping
Guaranteed Safe Checkout

Accepted Payments

cbn grinding wheel
150 x 3 x 20mm CBN Grinding Wheel, 60 Degree
$320.32

Request Call Back

"*" indicates required fields

This field is for validation purposes and should be left unchanged.

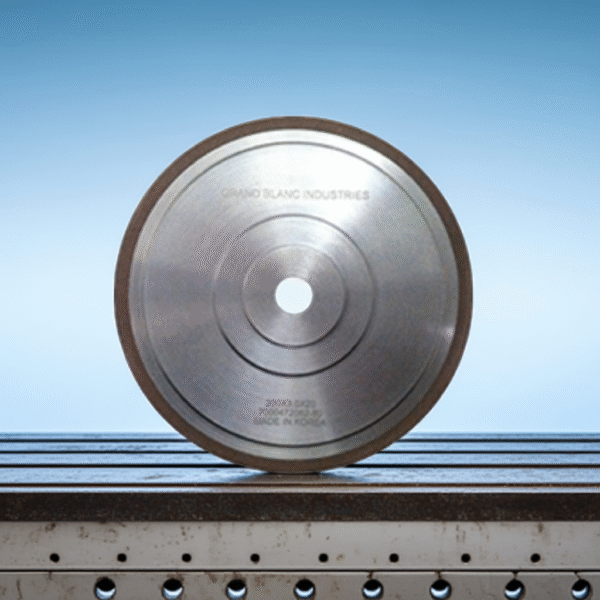

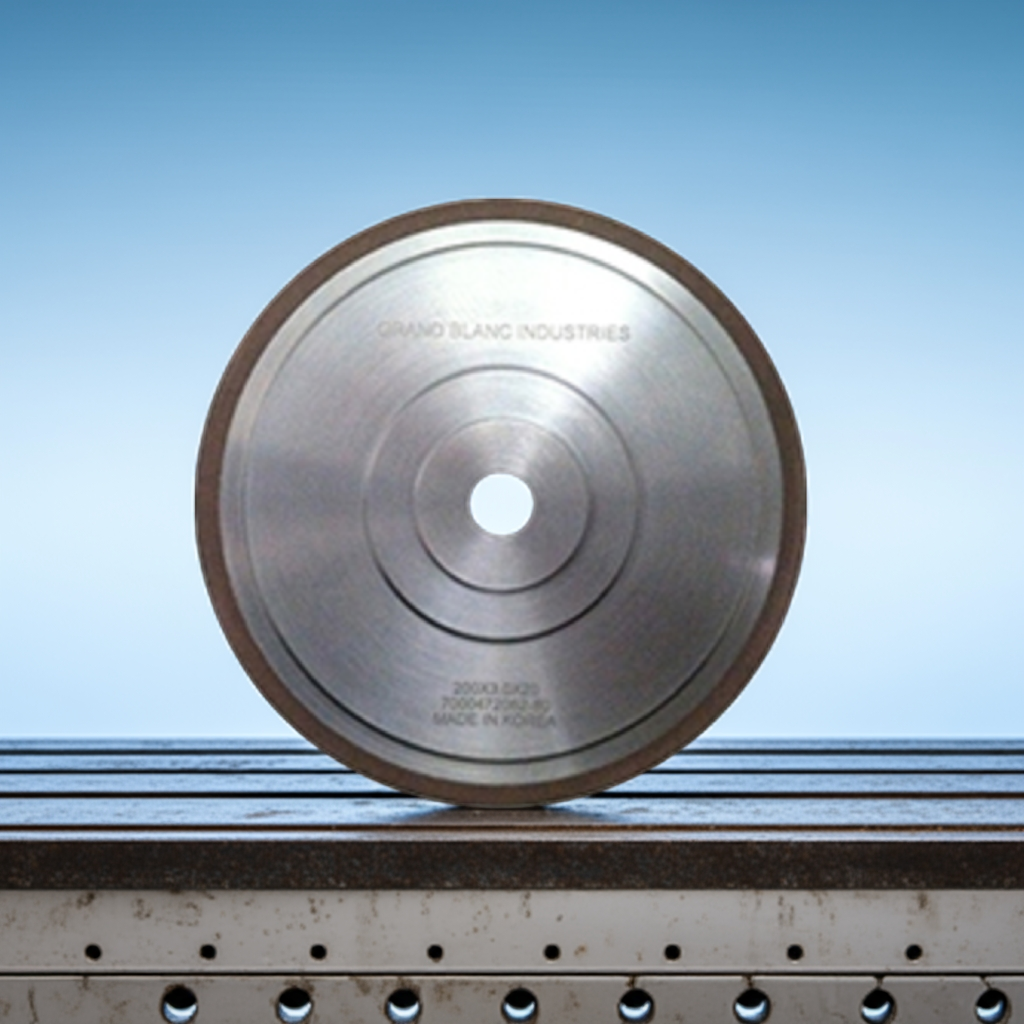

This is a 150 mm CBN grinding wheel with a 60-degree profile, for shops that sharpen, shape and finish high-speed steel and hardened tooling in-house. CBN (cubic boron nitride) is a super-abrasive that cuts with minimal heat, so the wheel helps protect the temper of the tool you are grinding and leaves a smooth surface finish. It has a 3 mm thickness and a 20 mm bore, and it is one of three angled wheels we stock in this size: 30, 45 and 60 degree.

Check two things before you order: the arbor and the angle. This wheel needs a machine that takes a 150 mm wheel on a 20 mm arbor, and a setup that calls for a 60-degree profile. If you are not sure which angle your machine or tooth form needs, call (800) 397-8511 with your machine’s make and model and what you are grinding.

What this wheel fits

  • Diameter: 150 mm (5.91 in).
  • Arbor / bore: 20 mm. Check this against your machine.
  • Thickness: 3 mm.
  • Profile: 60 degree. Also available in 30 degree and 45 degree.
  • Need a thinner wheel? Our 150 mm wheels also come in 1, 1.3, 1.6, 2 and 2.5 mm. See the full CBN grinding wheel range.

What it grinds

  • High-speed steel tools, including HSS saw blades
  • Hardened steels and hardened alloys

Typical work is sharpening, shaping and finishing. Because CBN runs cool, it suits work where overheating the tool would soften the edge.

Would you rather not sharpen in-house? We sharpen saw blades for you. See our cold saw blade sharpening service.

Choosing your angle

We stock this wheel in three angles. Diameter, thickness, bore and price are the same for all three; only the profile changes.

AnglePriceWheel
30°$320.32150 x 3 x 20 mm, 30 degree
45°$320.32150 x 3 x 20 mm, 45 degree
60°$320.32This wheel

Not sure which angle you need? Call (800) 397-8511 with your machine and what you are grinding, and we will pick it with you.

Specifications

AbrasiveCBN (cubic boron nitride)
Diameter150 mm (5.91 in)
Thickness3 mm
Arbor / bore20 mm
Profile angle60 degree
GrindsHigh-speed steel, hardened steels and alloys
SKU / MPNCSBS-CBN1507
Shipping weight3.1 lbs
Shipping carton6 × 6 × 1 in

Frequently asked questions

Will this wheel fit my machine?

It fits machines that take a 150 mm wheel on a 20 mm arbor. If you are unsure, call (800) 397-8511 with your machine’s make and model before ordering.

What is the difference between the 30, 45 and 60 degree wheels?

They are the same 150 x 3 x 20 mm CBN wheel with a different edge profile, and all three are $320.32. The right angle depends on your machine and what you are grinding, so call (800) 397-8511 and we will help you choose.

What materials can I grind with it?

It is made for high-speed steel and hardened steels and alloys, including HSS saw blades. Call (800) 397-8511 before using it on any other material.

Why choose CBN over a conventional grinding wheel?

CBN cuts with minimal heat, which helps protect the temper of hardened tools and leaves a smooth surface finish.

Do you have thinner 150 mm wheels?

Yes. Our 150 x 20 mm CBN wheels also come in 1, 1.3, 1.6, 2 and 2.5 mm thicknesses.

Can you sharpen my saw blades instead?

Yes. We offer a cold saw blade sharpening service if you would rather not grind in-house.

Additional information

Weight 3.1 lbs
Dimensions 6 × 6 × 1 in
